Welcome: Chuzhou kexin Machinery Technology Co., LTD
Language: Chinese ∷  English

Sheet metal

  • Freezer liner baseplate line

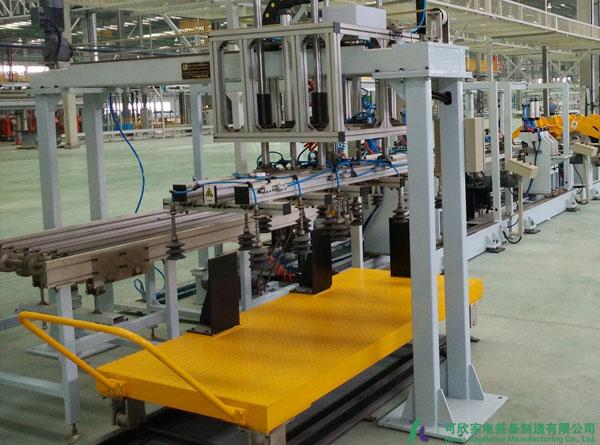

Freezer liner baseplate line

Freezer liner baseplate line

  • Product description: Freezer liner baseplate line
  • INQUIRY

Production line dimensions(Reference): length X width =21000mmX3000mm

Equipment working surface height: 900mm


Product specifications: according to the requirements of the user's drawings (see the list of all parts of the workpiece drawings of the product size:

Width: 360 ~ 600mm; Expansion length:  800 ~ 1500mm;

Forming material: t=0.45 ~ 0.55mm; embossed aluminum

production takt time: about 18 ~ 21 seconds / piece


Working station: 7

Power capacity: about 20Kw, 380V, 50Hz

Air capacity: 0.4 ~ 0.7Mpa

If the product drawings do not mark tolerance requirement,then the limitation of the tolerance follow the standard GB1804-m.


Machine color: the overall color of the equipment is GB GY-07 cardamom green, warning sign is GB Y07 yellow.

Delivery type: servo clamp
